Acryo TL-1.5K top-loading cryocooler

Acryo TL-1.5 K is a high-efficiency top-loading 1.5K cryocooler featuring simple operation, rapid cooling, high cooling capacity and lower base temperature. When replacing samples, there is no need to heat the entire refrigerator to room temperature. The sample can be quickly replaced by sample rod. It can not only quickly cool conventional solid film samples, but also effectively cool low thermal conductivity samples or irregularly shaped samples (powders, liquids, diamond anvil cell, etc.). It is also the first choice for rapid screening of quantum device samples.

Acryo TL-1.5K have a variety of options, such as choosing GM or pulse tube refrigerator with different cooling capacities, lower temperatures, larger inner diameter sample tubes, lower vibrations, compatibility with superconducting magnets, optical windows, optical sample rods, AC magnetization inserts, rotation sample rods, vacuum type sample rods, He-3 insert and dilution refrigerator inserts, etc.

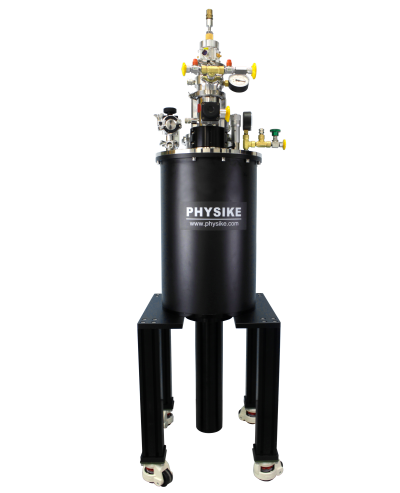

Typical Acryo TL-1.5K with compact tail

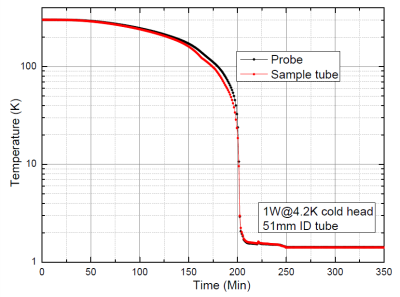

Typical Acryo TL-1.5K cooling down curve

Typical specifications of Acryo TL-1.5K
Temperature range		1.5K-325K（Option：<1.3 K）
Initial cooling time		<250min@1.5K
Cold head type		4K GM or pulse
Sample environment		Static exchange gas
Temperature stability		±10mK (1.5K-100K);±15mK (100K-325K)
Note		Based on 1 W @ 4.2 K cold head, 51 mm ID sample tube, 15 iR pump, no external heat load.

Typical applications

Electric/magnetic/thermal transport, UV/Vis/IR/THz, near-field optics, neutron scattering, X-ray, M?ssbauer spectroscopy, high-energy physics, high pressure (DAC), NMR, microwave devices, electron spin devices, low-dimensional materials, superconducting materials, quantum devices, material tensile testing.

Options
Cold head	GM cryocoolers (1 W, 1.2 W, 1.8 W, 2.5 W, 4 W) @ 4.2 K or pulse tube cryocoolers (1 W, 1.5 W) @ 4.2 K
Sample tube	Larger/smaller I.D. sample tubes, Vis/IR/THz optical windows, Mylar/ Kapton/ aluminum/ vanadium windows
Low vibration	Cold head suspension damping, vibration-damping sandbox, Split valve pulse tube cryocooler
Feedthroughs	Multipin/SMA/2.92mm,2.4mm,1.85mm, 1.00mm /BNC/Triax/fiber
Sample holders	PUCK/LCC/DIP sample holders, liquid/powder sample holders
Circulation pump	Scroll and roots with different pumping speeds
Sample rod	Single axis/Dual axis rotation sample rod, Sample in vacuum, Optical sample rod
Inserts	AC magnetic susceptibility insert, He-3 insert and DR insert.
Wiring	Twisted pair wires, Flexible coax/triaxial cables, RF semi-rigid cables
Others	Load-lock mechanism, compact tail section compatible with magnets, 500 K/800K upper temperature limits, higher cooling capacity, lower base temperature

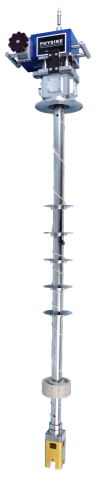

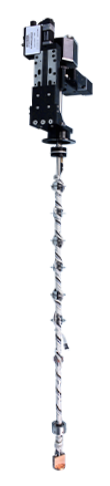

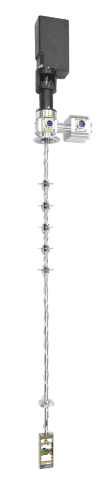

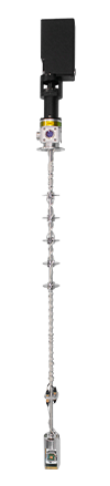

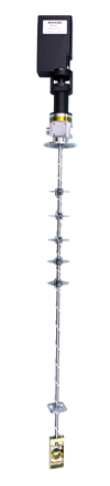

Typical sample rod examples

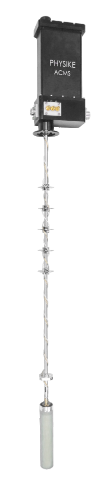

Single-Axis Rotation Rod	High-Pressure Rotation Rod	AC Susceptibility Sample Rod	High pressure in-situ pressure adjustment sample rod	Dual-Axis Rotation Sample Rod	800 K Sample Rod with a Motorized Translation and Rotation Stage

Examples

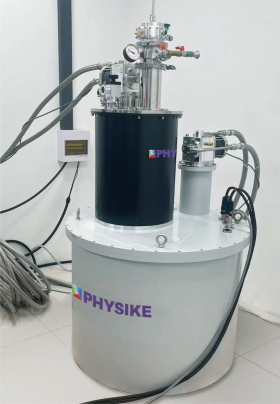

1、Acryo TL-1.5K Cryocooler with a 65 mm ID sample tube, compatible with a 14T superconducting magnet. The base temperature of VTI is less than 1.45 K and the base temperature of He-3 insert is less than 270mK.

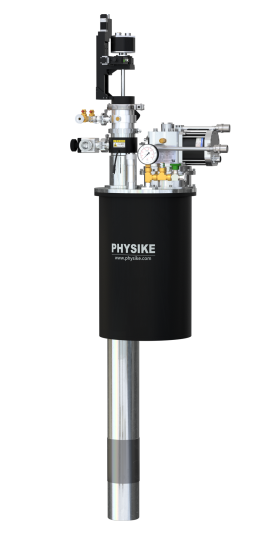

2、Acryo TL-1.5K is designed specifically for neutron scattering experiments, featuring a 61 mm ID sample tube with a vanadium window. A programmable motorized vertical translation stage and rotation stage are integrated at the top of the sample tube, enabling vertical movement and axial rotation of the sample rod.

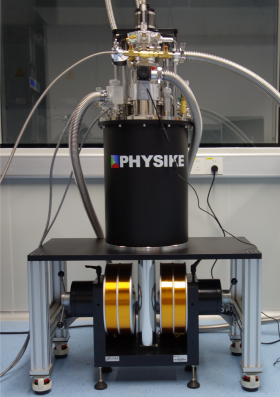

3、Acryo TL-1.5K adopts the patented cold head suspension damping technology, and incorporates high-performance flexible thermal links and rigid support structures for vibration reduction to achieve ultra-low vibration. The system is equipped with a compact tail section for compatibility with electromagnets.
